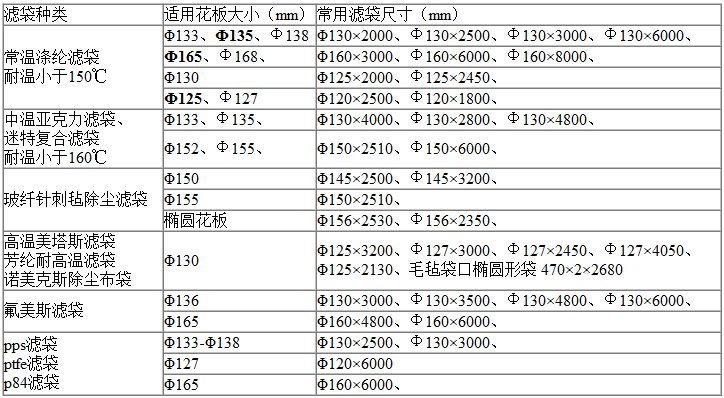

Dust filter bag; The specifications and dimensions mainly refer to the material, weight, thickness, air permeability, and circular bag (bag mouth diameter or flower plate hole diameter, bag body length) of the filter bag. In addition, the specifications and dimensions of the filter bag also affect the service life, sewing method (such as 60mm reinforcement layer at the bag head and bottom), and the material of the thread used for sewing the filter bag body. The commonly used specifications and dimensions of circular filter bags produced by Hebei Feixiang Environmental Protection Equipment Co., Ltd. are shown in the table below: Dust removal filter bag specifications generally include diameters of 120, 130, 152, 180, 200, 250, 292, 300mm, etc; The lengths are: 2000, 2400, 2480, 2800, 3060, 3200, 3600, 4000, 4400.
According to the shape of the dust filter bag, it is mainly divided into three types: circular, flat, and irregular.
1. Circular: The dust bag is cylindrical in shape. Its specifications are represented by diameter x length, i.e. D x L (mm);
2. Flatness: The dust collector bag is flat, including rectangles and trapezoids, and its specifications are expressed as circumference x length, i.e. P x L (mm);
3. Alien: A filter bag with a unique shape, represented by its structural characteristic parameters.
To achieve the best dust removal effect, in addition to the size of the dust removal filter bag, technology is also a key factor. Feixiang Environmental Protection can design and provide excellent solutions according to customer needs.
